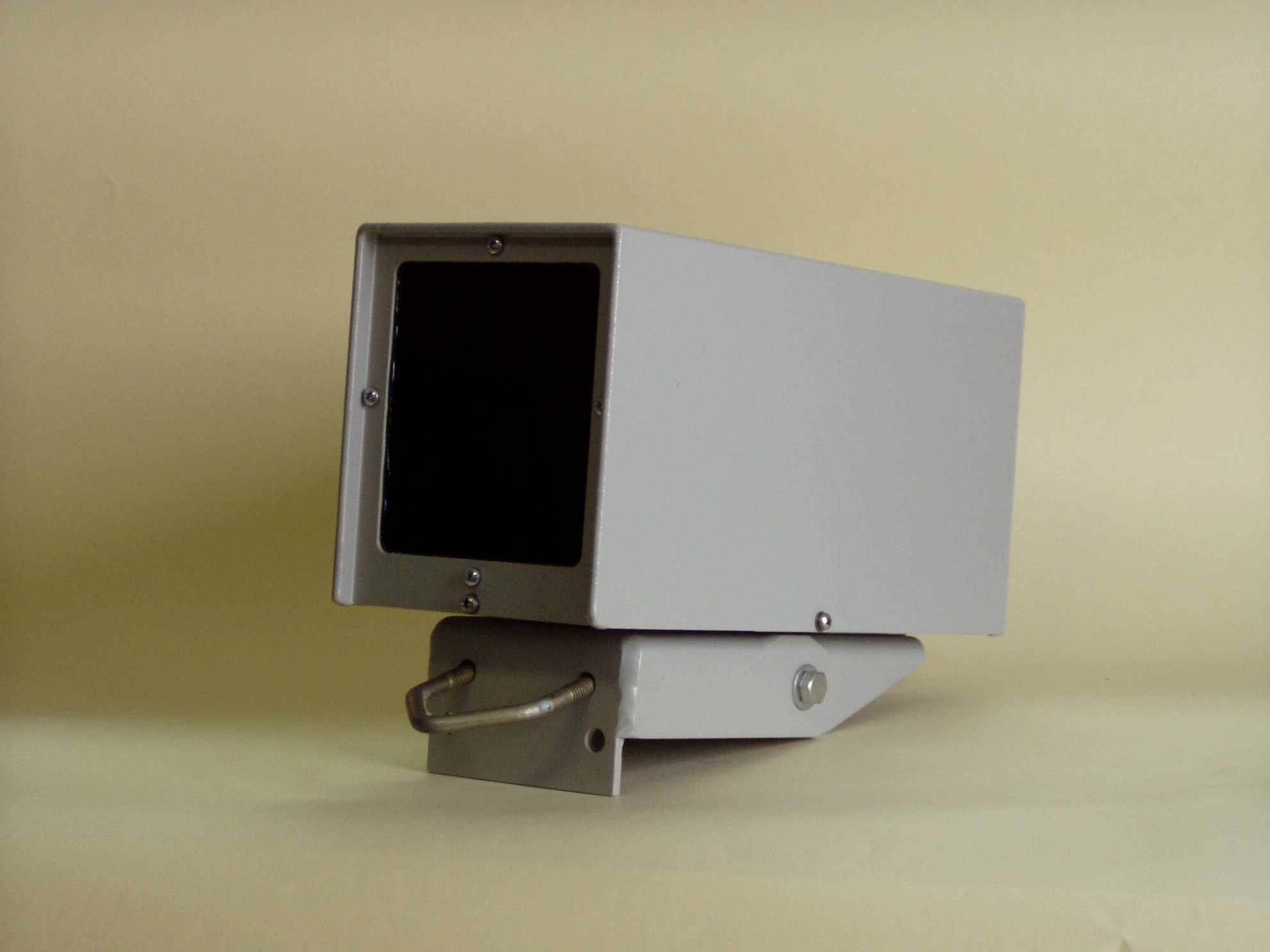

ST2000 - Intruder Detection and Alarm System
The ST2000 is a family of products used as high sensitivity, short range, Doppler Radar intruder detection systems.

The ST2000 is used for security applications to monitor, detect and warn about intruders in a guarded area.
Features:
  • Compact, lightweight and simple to install.
  • Modern, stat-of-the-art digital signal processing for increased probability of detection.
  • Automatic or simple manual setup procedure.
  • Operate as standalone system or part of a network of sensors.
Applications:
Protection and safeguarding of sensitive sites, such as:
  • Military bases and posts
  • Airports
  • Power stations
  • Government buildings
  • Prisons
Technical Specifications:
  • Detection Range
  • Azimuth coverage
  • Elevation coverage
  • Min. detected velocity
  • Time to alarm
  • Transmit frequency
  • Power consumption
  • Dimensions (LxWxH)
ST2000A
ST2000B
ST2000C
50 meters
30 degrees
15 degrees
1.5 cm/sec
2.5 sec
10.5 GHz
6W
290x125x145 mm
150 meters
20 degrees
10 degrees
1.5 cm/sec
2.5 sec
10.5 GHz
15W
290x140x230 mm
500 meters
10 degrees
10 degrees
1.5 cm/sec
2.5 sec
10.5 GHz
20W
290x230x230 mm
